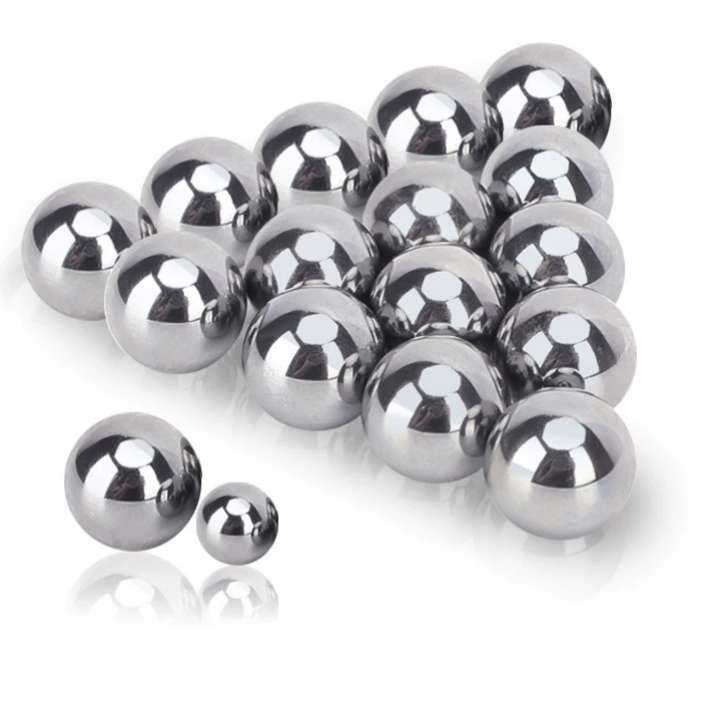

304 Stainless Steel Balls
Profile:304 stainless steel balls are made of austenitic stainless steel (containing 18% chromium and 8% nickel), which is corrosion-resistant, non-magnetic, and suitable for temperatures ranging from -200℃ to 700℃. They have a high surface finish and are widely used in food, medical equipment, and chemical valves, combining environmental friendliness with durability.
Size:1/32 inch (0.8 mm) to 13/16 inch (20.637 mm) (also can be customized according to your requirements)
Grade:G60、G100、G200、G500、G1000
Hardness:HRC ≤ 28
Applications:304 stainless steel balls are used for food machinery bearings, medical instrument accessories, chemical valve components, corrosion-resistant and non-magnetic, suitable for precision equipment.
Facebook
Telegram
X
| Material | ASTM / AISI | YB | JIS | DIN | |||
|---|---|---|---|---|---|---|---|
| Conversion | 304 | 0Cr19Ni9 | SUS304 | 1.4301 | |||
| Composition | C | Cr | Mn | Si | P | S | Ni |
| 0.08%Max | 18-20% | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 8-10% | |
| Mechancial Properties | Tensile Strength | 800,000 – 180,000 psi | |||||
| Yield Strength | 50,000 – 150,000 psi | ||||||
| ELONGATION IN TWO INCHES | 55.0%-60.0% | ||||||
| Modulus of Elasticity | 29,000,000 PSI | ||||||
| Rededuction area | 55.0%-60.0% | ||||||
| Density | 0.286 Ibs/cu in | ||||||
| Physical Property | Corrosion resistance | Good | |||||
| Magnetic | Slighty ( Demag process avaibalbe ) | ||||||
