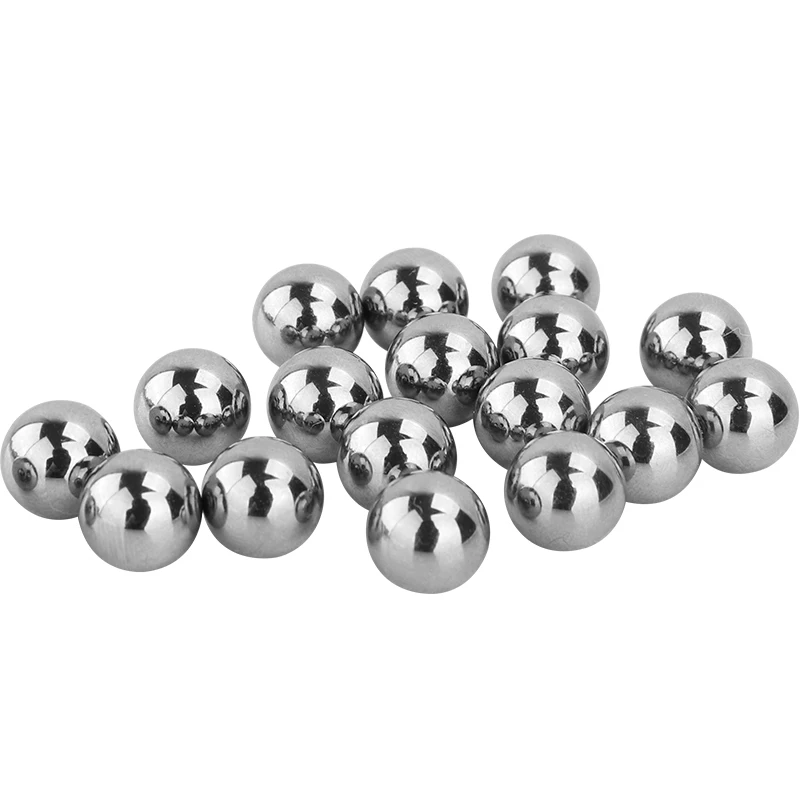

316 Stainless Steel Balls
Profile:316 stainless steel balls are made of austenitic stainless steel, containing 2-3% molybdenum, which significantly enhances resistance to chloride corrosion. They possess excellent high-temperature resistance, mechanical strength, and machining performance, and are widely used in precision parts such as valves and bearings in chemical equipment, marine engineering, medical devices, and the food industry.
Facebook
Telegram
X
| Material | ASTM / AISI | YB | JIS | DIN | |||
|---|---|---|---|---|---|---|---|
| Conversion | 316 | 0Cr19Ni9 | SUS316 | 1.4401 | |||
| Composition | C | Cr | Mn | Si | P | S | Ni |
| 0.08%Max | 16.5~18.5 | 2.0%Max | 1.0%Max | 0.045%Max | 0.03%Max | 10-14% | |
| Mechancial Properties | Tensile Strength | 800,000 – 120,000 psi | |||||
| Yield Strength | 45,000 psi | ||||||
| ELONGATION IN TWO INCHES | 10%-15% | ||||||
| Modulus of Elasticity | 28,000,000 PSI | ||||||
| Rededuction area | 55%-65% | ||||||
| Density | 0.288 Ibs/cu in | ||||||
| Physical Property | Corrosion resistance | Good | |||||
| Magnetic | No | ||||||
